PDSimply

PDSimply

Home/Products/Monitoring/PDSimply
Simple to be Widespread, Integrated and Extended.

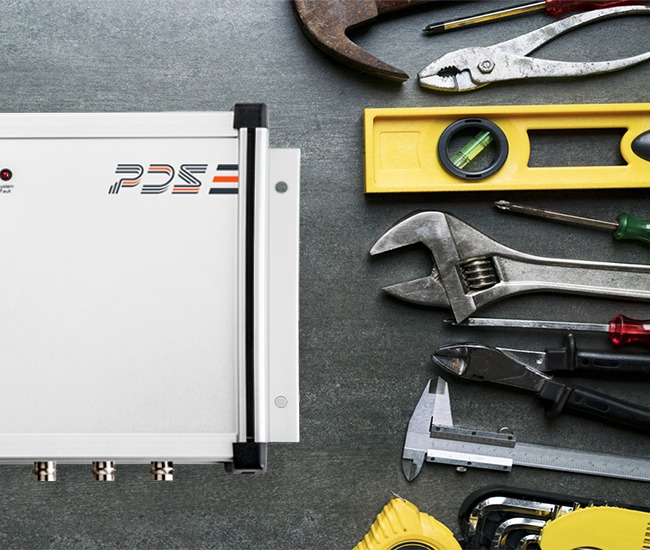

Design For Power Devices

Design For Power Devices

Protuct suitable for many kinds of sensors.
Transformer  |  Switchgear  |  Cable  |  GIS  |  Rotating Machine



Design For Power Devices

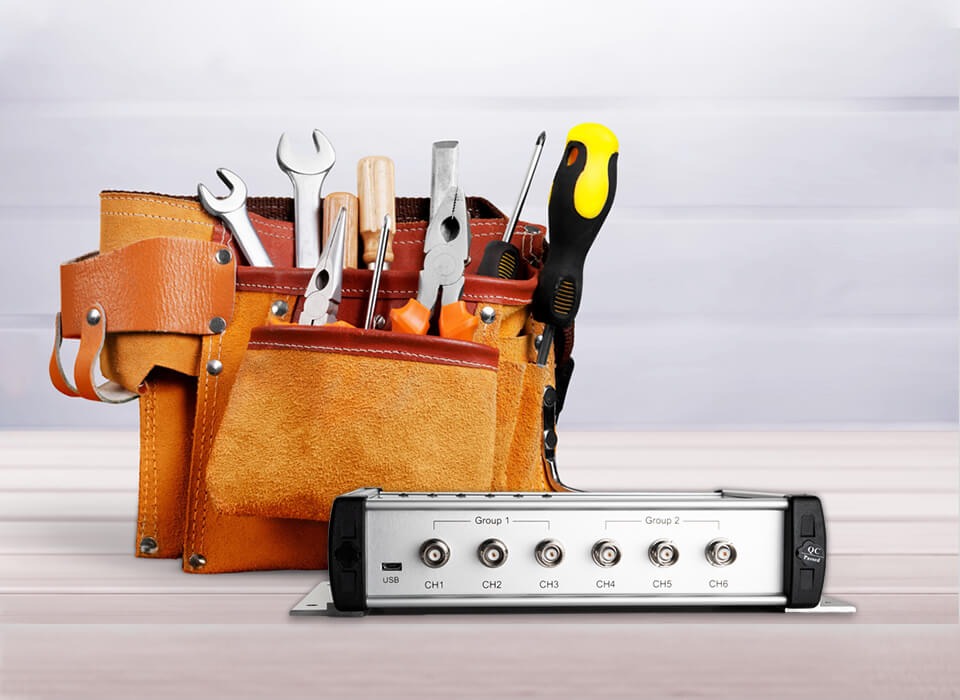

All In One Design

All In One Design

Noise Suppression, Data Acquisition, PD Waveform Analysis .


All In One Design

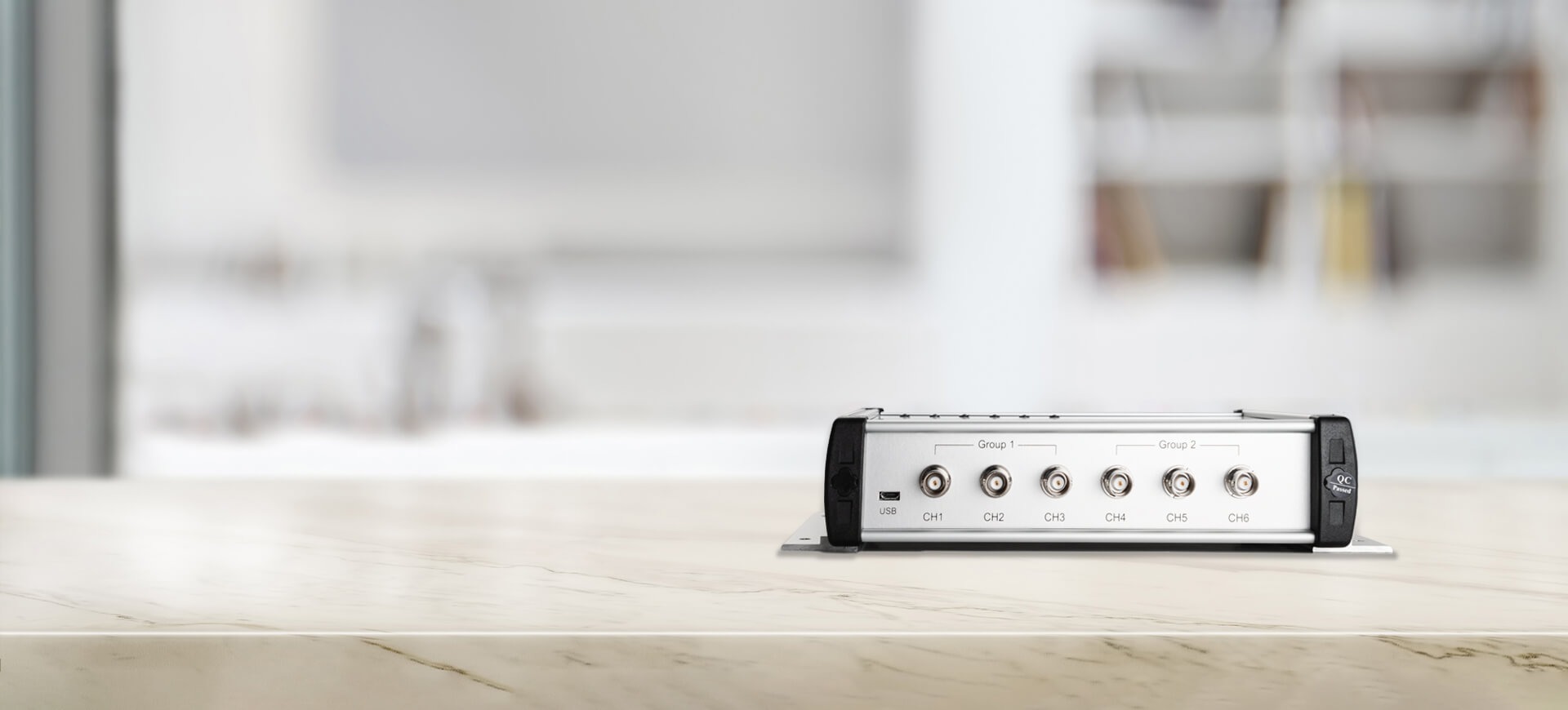

Suitable For Sensors

Suitable For Sensors

Protuct suitable for many kinds of sensors.
TM Sensor, TEM Sensor, TEV Sensor, Bushing Sensor .

Suitable For Sensors
Powerful Network Structure

Powerful Network Structure

Edge Computing, Queue Buffering, Real Time Streaming .
Powerful Network Structure
Data Visualization

Data Visualization

 •   Overview Panel
 •   Trend Analysis
 •   PRPD Pattern




Data Visualization

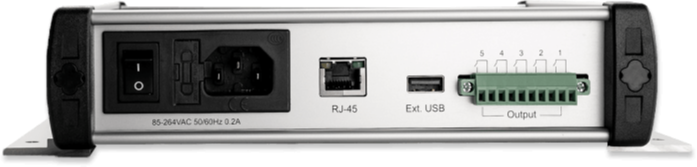

Specifications
Data Visualization
Channels 6
Frequency Range UHF version: 150 MHz – 900 MHz
Full band version: 1.5 MHz – 2,000 MHz
Measurement Range 1 mVpp – 5 Vpp
With 60 dB dynamic amp
Filter Built-in 50 MHz / 150 MHz High-pass filter
Output 5 dry-contact for SCADA
Flash Size 512 MB
( for 6 months PD trending data )
